Description:

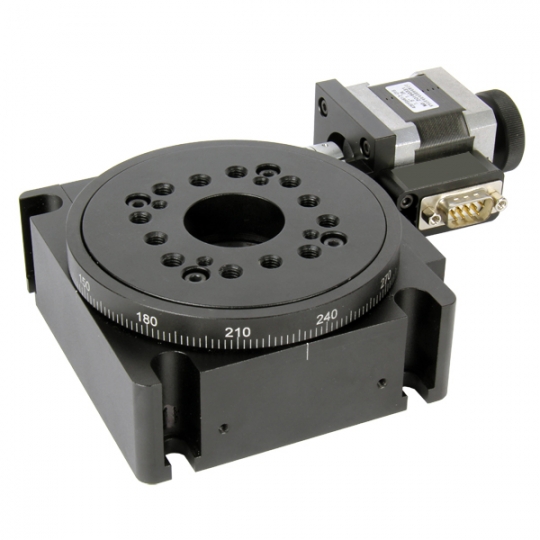

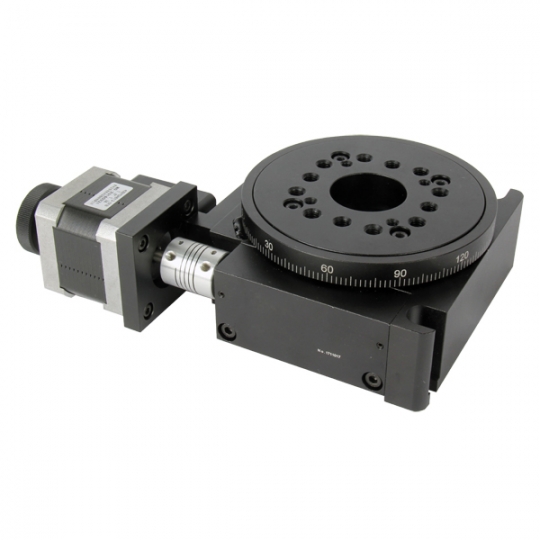

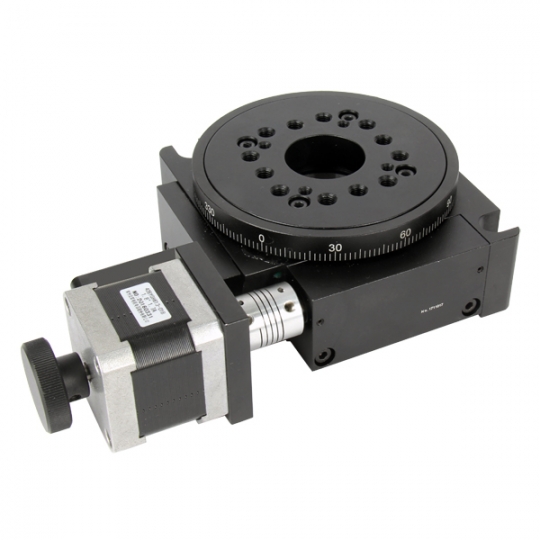

• The BY-MOR-100-30 rotation stage is a compact and precise device that can rotate continuously by 360°. It features precision ground worm gear which delivers consistent torque to the rotating carriage, while the proprietary ball bearing design ensures smooth rotation with minimal wobbling.

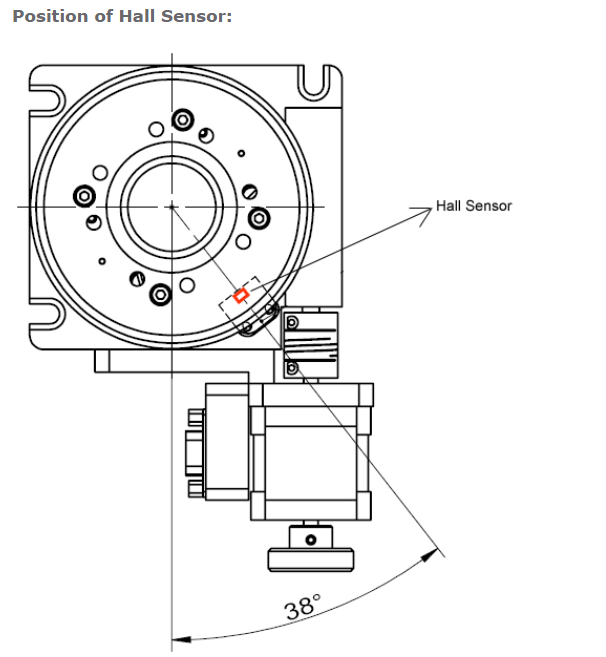

• This motorized rotation stage is equipped with a hardware origin and a central aperture of 30mm. A hall effect sensor is built into the device to prevent the top plate from moving in the negative direction and passing over the zero position.
• The stage’s scale ring can be easily turned manually and, after the device has been returned to the zero position by the controller or software, the scale ring can be adjusted to align with the 0 scales.
• To control the device, it can be connected to our motion controller via the DB9 interface and controlled using our computer software through either the USB or RS232 interface on the controller.
