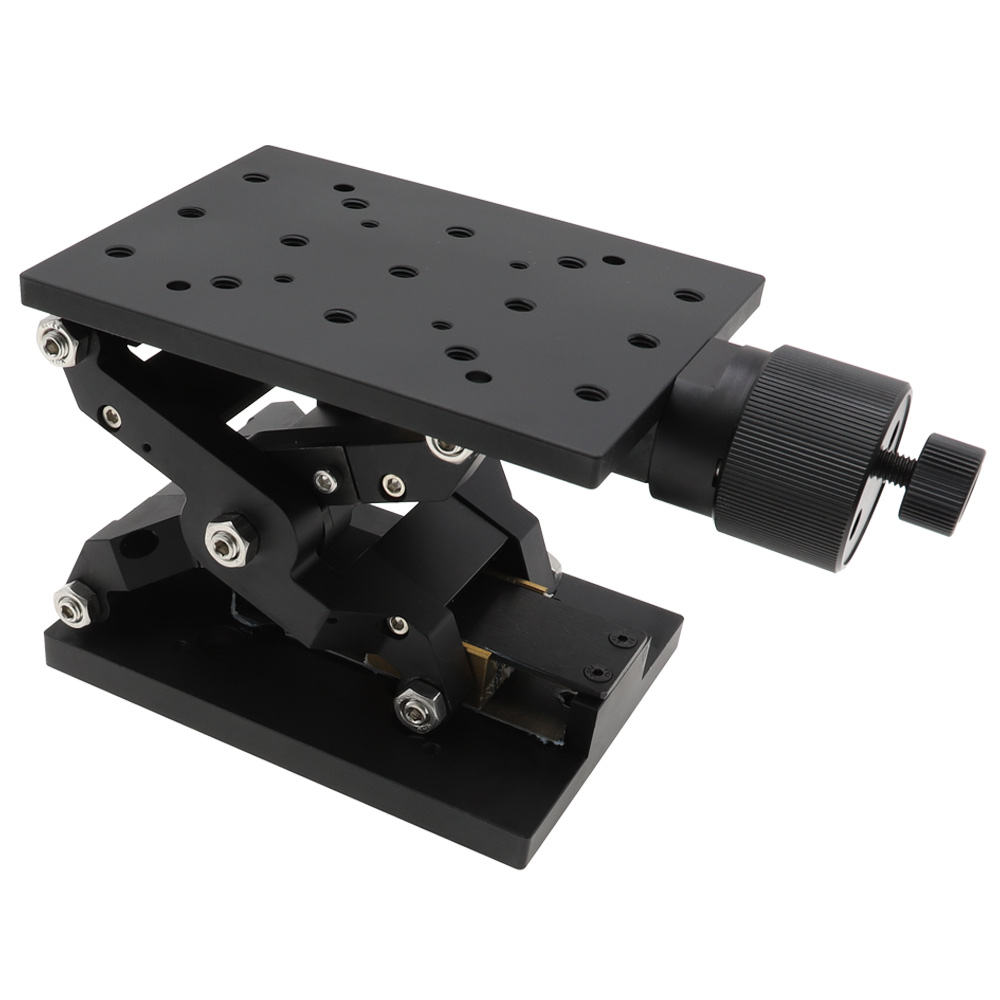

BY-60 Manual Vertical Stage Lab Jack Stage

Product Description

Product Features
1. Scissor-shaped riasing and lowering support.
stable movement,easiness,high precision and load capacity;
2. Multiple hole sites design on both up and low sides as mounting sides,with high adaptability,complete with locking hand wheel;
3. For application in large stroke, without quantitative raising and lowering adjustment.

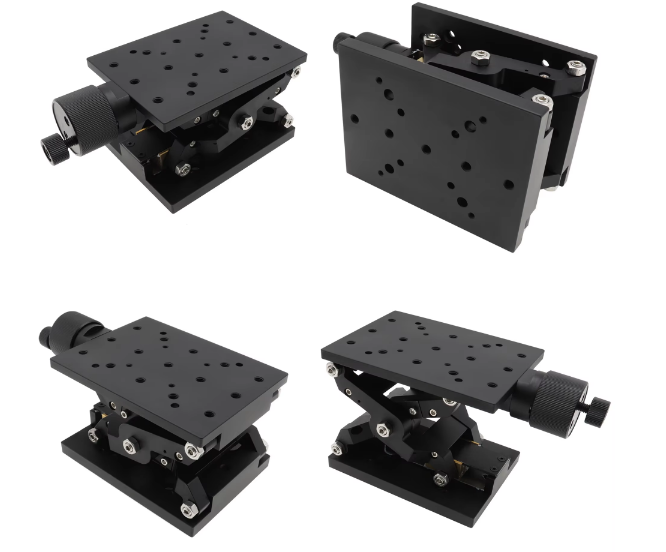

Product Show

Techincal Parameters

  • 1,Pantograph mechanism provides a large adjustment range and high load capacity.
  • 2,Rotate the adjustment handle to adjust the height while keeping the table surface level.
  • 3,Firm clamping is achieved with split clamp system.

Model

BY-60

Platform Size

120x80mm

Travel range

60mm

Accuracy

0.03mm

Resolution

0.01mm

Driving mode

Micrometer Screw

Load Capacity

20kg

Driving Position

Horizontal center

Net Weight

1.2kg
