Features:
-
Two axes tilt platform for aligning optical components.
-
Micrometer head with 0.5mm pitch.
-
Hardened and polished steel ball pivots.
Products
Low Drift Vacuum Stainless Steel 2-axis Tilt Stages Manual Positioning Stages
PRODUCTS
CONTACT US
Low Drift Vacuum Stainless Steel 2-axis Tilt Stages Manual Positioning Stages
- Phone : 86+18569159807
- Email : calvinmai@jxbayous.com
- Wechat : 18569159807
- Whatsapp : 86+18569159807
Product Description

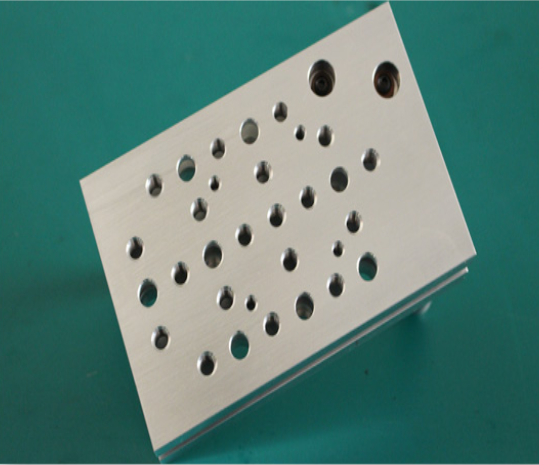

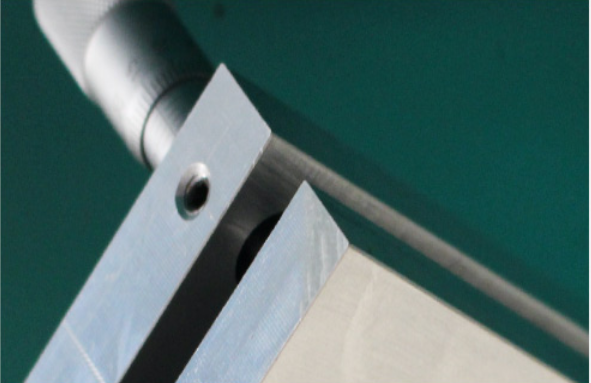

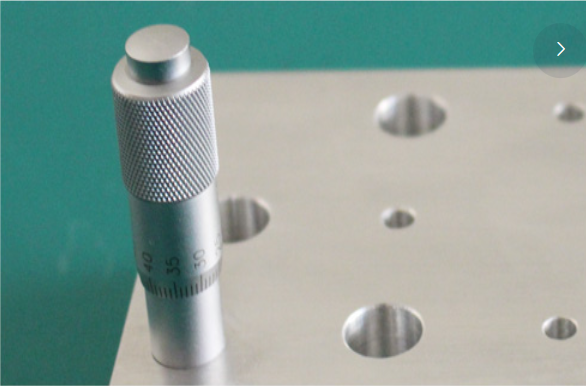

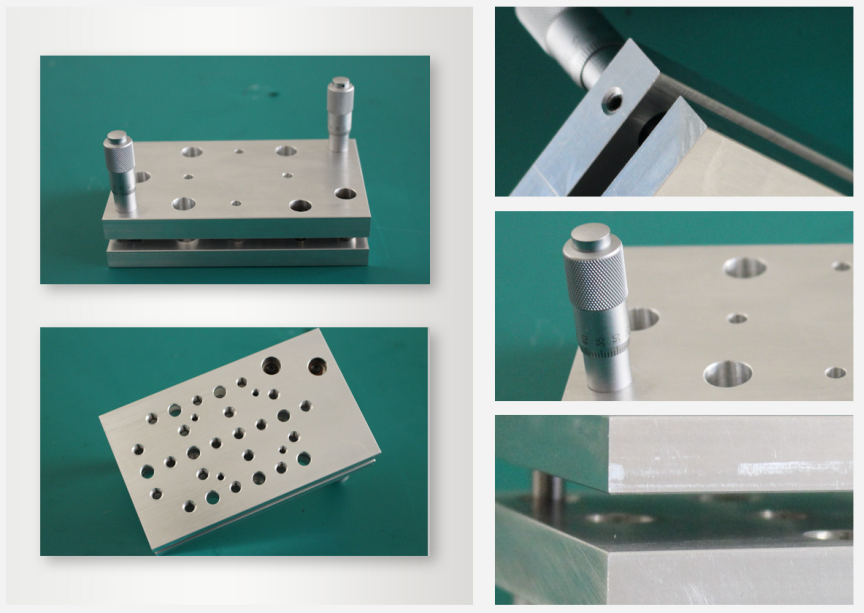

Product Show
Specifications:
| Model | BY-VA22MQ02-5XY | |
| Drive position | Double-axis drive micrometer | |
| Table size （mm） | 125mm×75mm | |
| Tilt angle range | ±5° | |
| Materials | Aluminum Alloy | |
| Surface Treatment | Vacuum processing without oxidation finish; secondary fine grinding | |
| Loading capacity(kg) | 10kg | |
| Precision | ≥5′ | |
| Weight (kg) | 0.51kg | |
