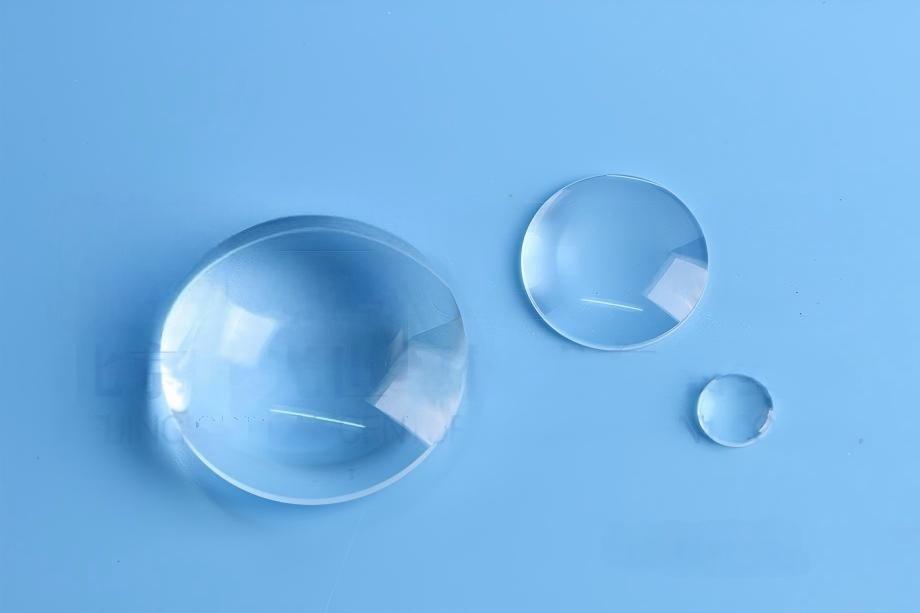

OCL1 series planoconvex lens

1. Material: K9 optical glass or fused silica

2. Design Wavelength: 587.6nm

3. Diameter Tolerance: +0.0/-0.1mm

4. Center Thickness Tolerance: ±0.2mm

5. Surface Figure: <λ/4@632.8nm

6. Focal Length Tolerance: ±2%

7. Centration: ＜3 arc min

8. Bevel：0.2mm×45°
