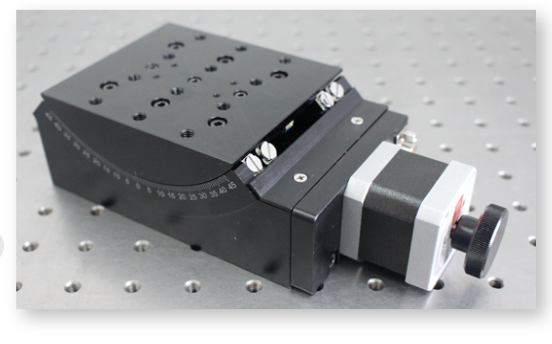

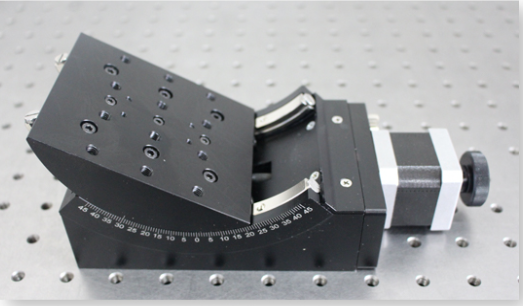

Motorized Two-Axis Motorized GonIometer & Tilting Stage Table Positioning Motion Platform Load Capacity 10kg

• Product Description

• ※ Equipped with a standard stepper motor and RS232 interface, the motion controller independently developed by the company can achieve automated control over it
• ※ The rotary shaft system is precision machined through multiple processes, offering high mating accuracy, large load capacity, and long service life;
• ※ Utilizes a precisely matched worm gear structure for smooth movement, enabling arbitrary forward and reverse rotation with minimal backlash;

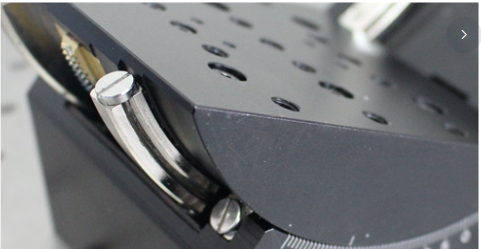

• ※ Features a cleverly designed backlash elimination mechanism that can adjust for backlash clearance caused by long-term use;
• ※ Special structural design ensures extremely low swing and tilt of the angular stage surface, making the motion more stable;

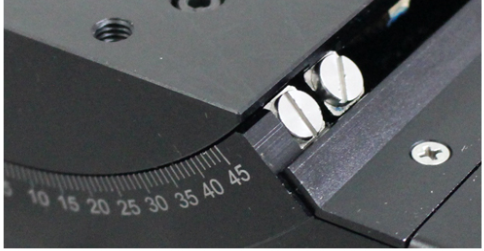

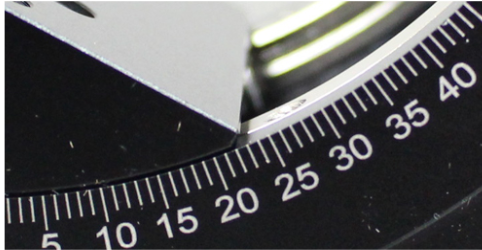

• ※ The scale ring around the outer edge of the stage is a laser-engraved ruler, which can rotate relative to the stage surface for convenient initial positioning and reading;
• ※ The stepper motor and worm gear are connected via an imported high-quality elastic coupling joint, ensuring synchronized transmission, good eccentricity elimination performance, significantly reducing eccentric disturbance with low noise;
• ※ The electric angular stage can be used in a horizontal or vertical position, and can be combined with other types of stages to form a multi-dimensional electric adjustment stage;

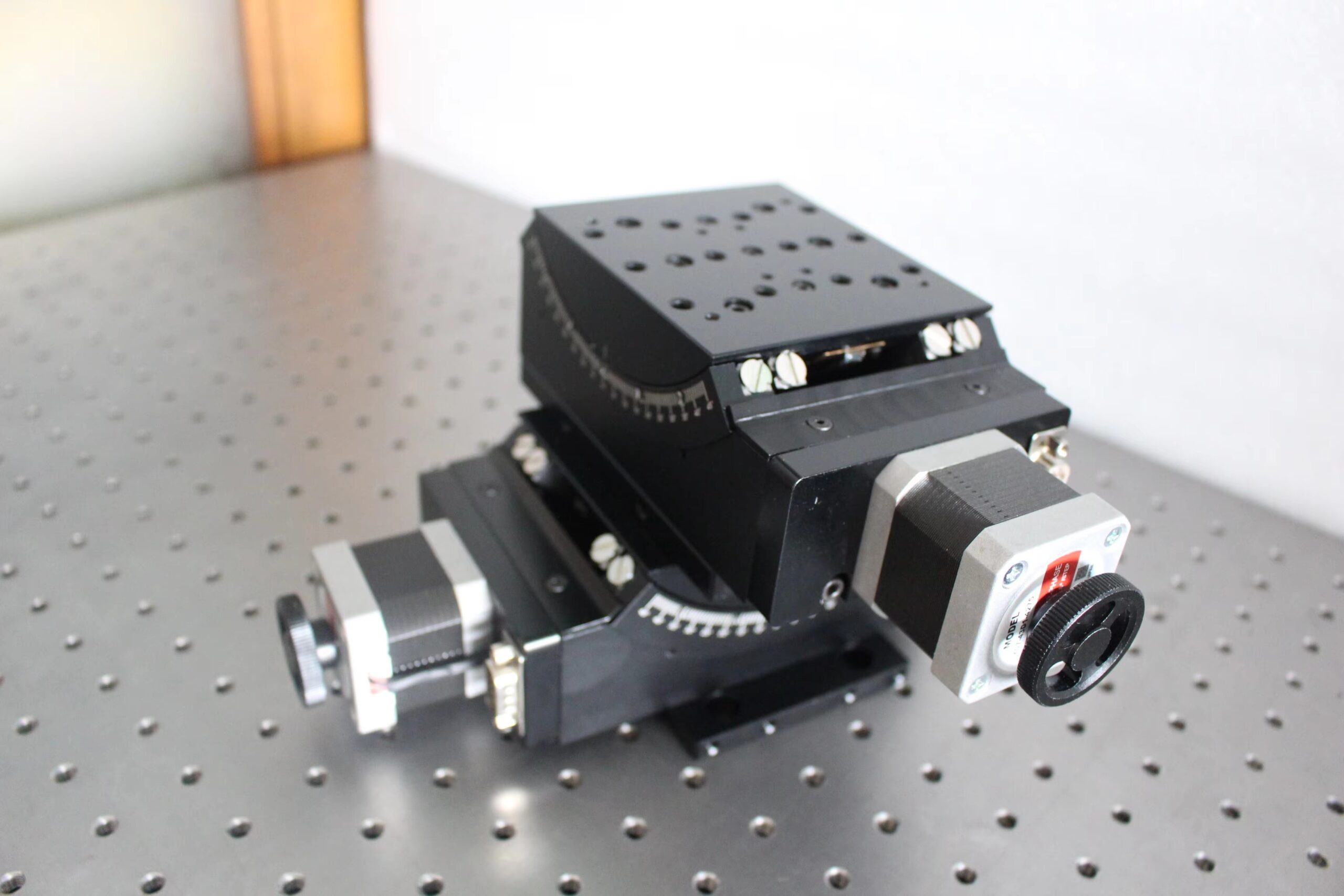

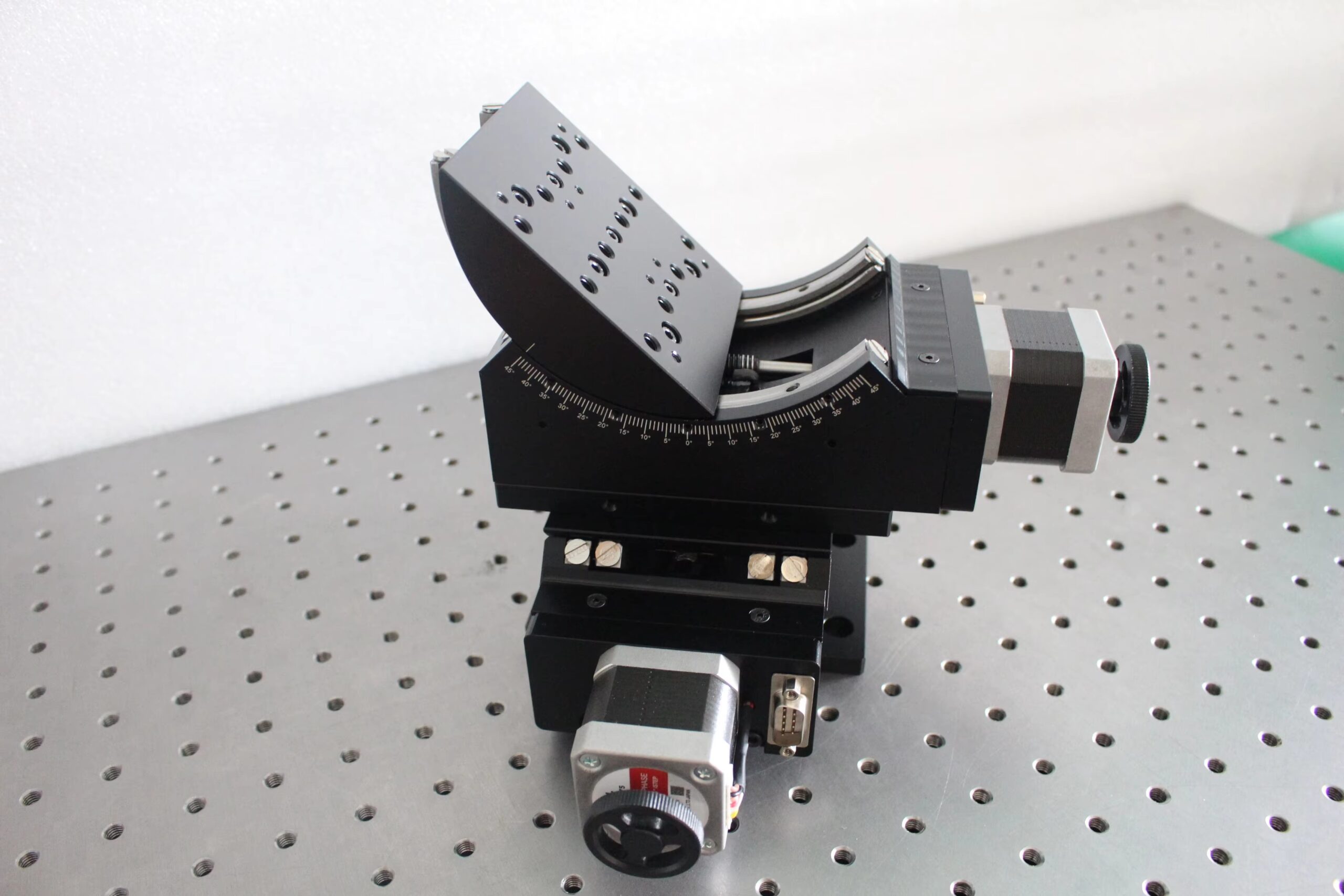

• ※ Electric angular stages are designed for stacking in pairs, with two carefully designed rotation radii allowing two-dimensional orthogonal rotation around a common point after stacking;
• ※ Features limit function, initial zero function, servo motor replacement option, encoder installation option, accepting product modifications and custom designs.
