Built-in Air Springs Self Balancing Table Top Optical Table

Product Description

M6 Tapped Mounting Holes Built-in Air Springs Self Balancing Table Top Optical Table



Applications:
  • Microscopes and electric microscopes
  • Small size optical devices
  • Roundness measurement Instruments
  • Other devices that requires high vibration isolation efficiency

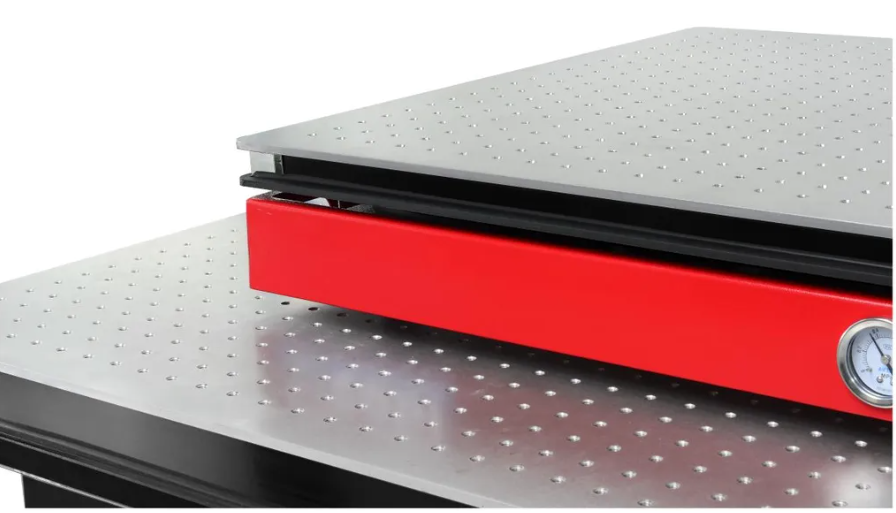

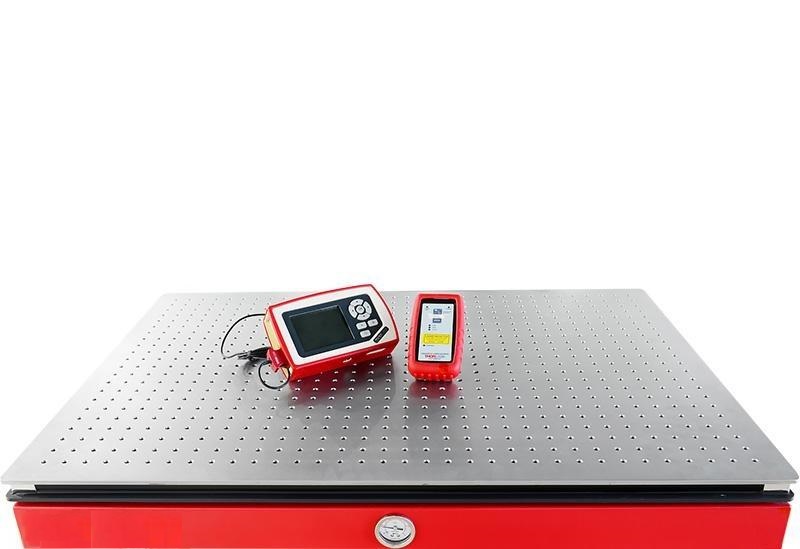

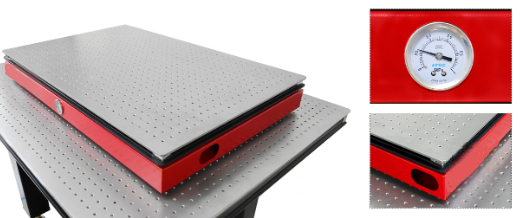

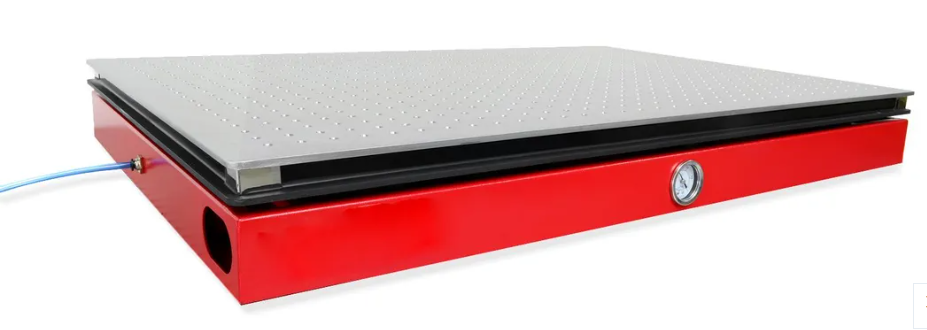

Product Show

Technical Specifications:



Inherent Frequency Vertical: 6-8Hz    Horizontal:6-12Hz
Dimensions 900x600x109mm
Table Top Flatness ≤1mm/m²
Re-leveling Accuracy ±0.1mm
Compressed Air Source 0.2~0.4MPa
Surfaced Roughness ≤1.6μm,matte surface finish
Surface plate 430 stainless steel,thickness 6
Top Skin thickness of breadboard 6mm, 430 stainless steel
Bottom Skin thickness of breadboard 4~6mm,carbon steel

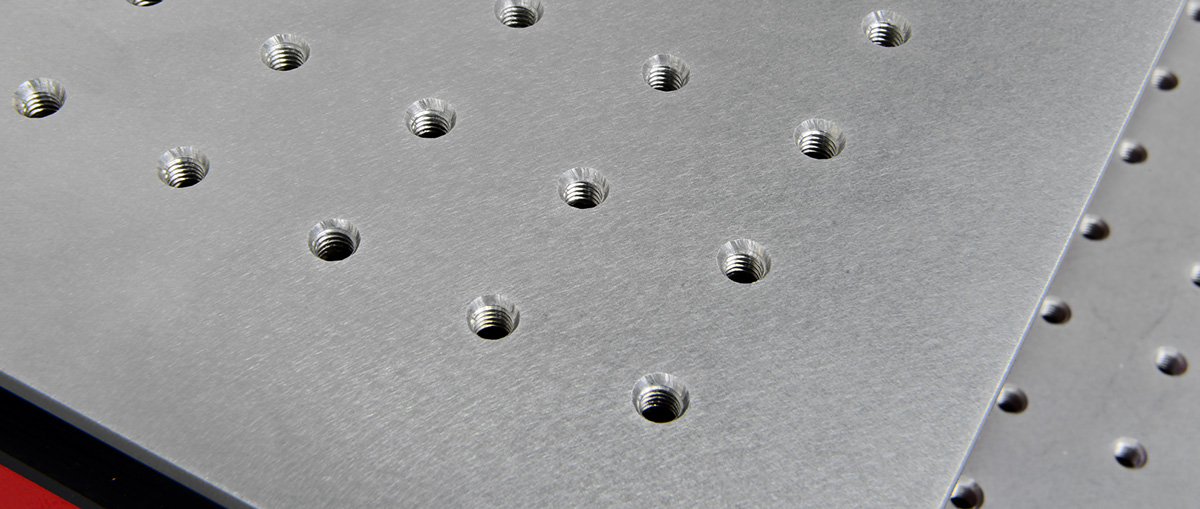

Mounting Holes M6 tapped mounting holes with 25X25mm hole grid,boarder edge:37.5mm
Leveling Type Automatic
Load Capacity 100kg
Net Weight 91.4kg
